Luminous Solar NXG 1400 Inverter UPS Review

Luminous NXG 1400 is the biggest solar inverter UPS which is capable of running the majority of the home appliances using solar power or using mains line. The biggest advantage of this inverter is it gives more priority to solar energy than mains energy.

If you are planning to make your own self managed on-grid solar system or complete off-grid solar setup, Luminous Solar NXG 1400 Inverter UPS is an ideal solution for you.

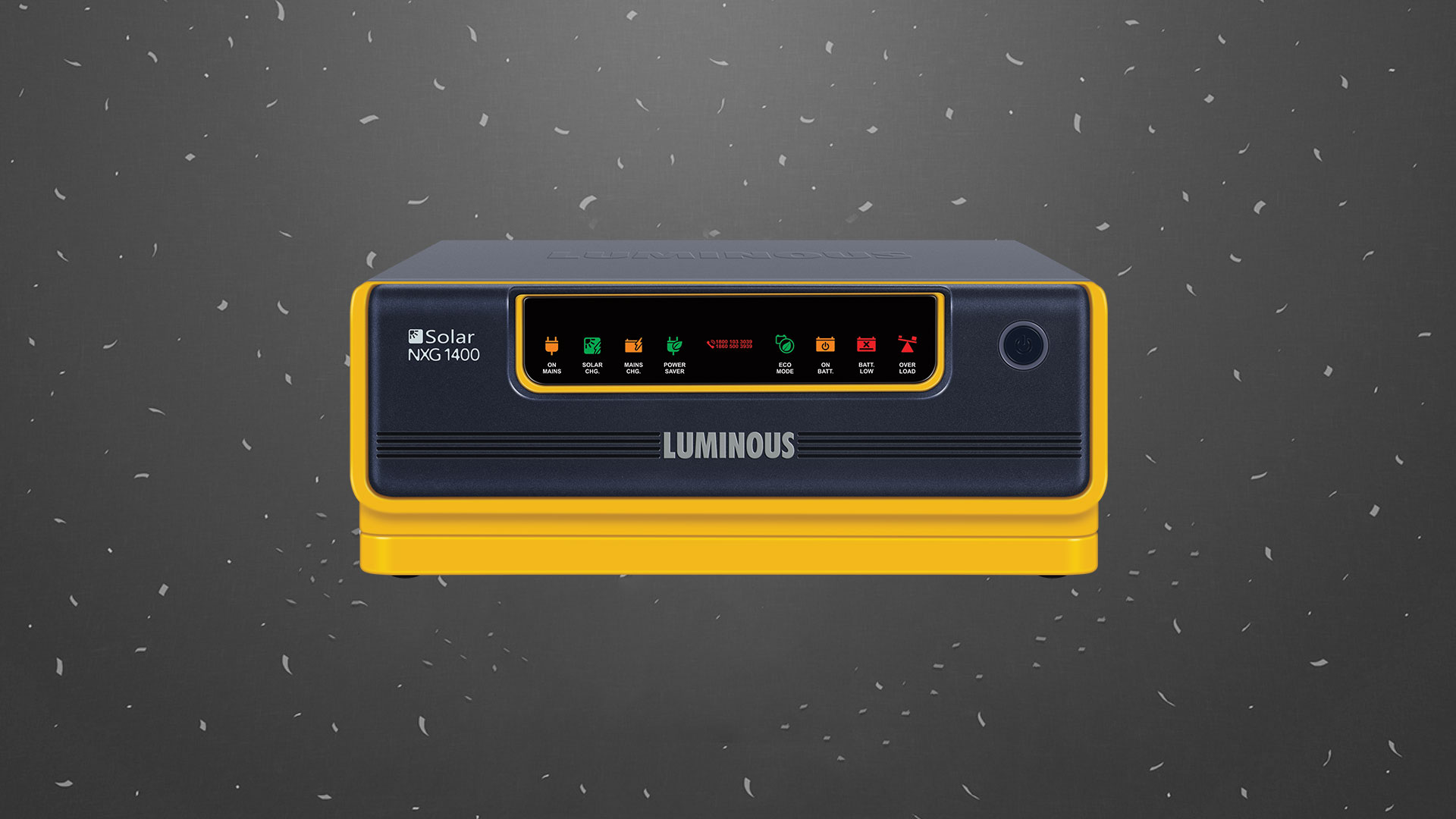

Luminous Solar NXG 1400 Inverter UPS

Let’s see some of its technical details.

  • Rated AC Power: 1100 VA, which means you can achieve a maximum of 800 Watts load.
  • Maximum supported solar panel power: 1000 Watts (12V), suggested up to 800 Watts.
  • Inbuilt Charge Controller Rating: PWM 40AMP/12V, with 98% efficiency (fast-charging).
  • Minimum battery required: 1, more can be connected in Parallel for longer backups.
  • 2 Years of the manufacturer’s warranty.

Features of Luminous Solar NXG 1400

Luminous NXG models are known for reliability and they are all-rounder solutions for most of the basic home workloads. Before we know what we can run on it, let’s see some features.

ISOT Technology

Luminous NXG UPS uses ISOT (Intelligent Solar Optimization Technique) technology, which means when the battery is fully charged, it supplies the power directly from solar panels and maximizes the solar energy usages while limits or cuts the mains energy consumption.

Based on our testing, we found up to 2.5 or 3 units saving every day and up to 2 units in the rainy or winter season. Consider installing solar panels in an open roof without any shadows.

i-Charge Technology

It is fast charging technology where the inverter uses 15 Amps instead of 10 Amps to charge the batteries if the mains power is available. By default, this feature is off to save the light bill, but you can turn this feature on if you are living in an area with major power outages.

ECO/UPS Mode

This is one of the most useful features for all the Luminous NXG models. By default, it is set to Eco mode, but you can turn on UPS mode for sensitive appliances like Desktop computers.

To switch between ECO/UPS mode, follow the red box-styled toggle switch. Press and hold it for 2 seconds to change the inverter modes. Note that UPS mode uses more battery power.

What it Can Run?

To be clear, it would be based on your setup with solar panels. Here I’m listing out my test configs.

  • Luminous NXG 1400 Solar UPS Inverter
  • Luminous 150 Ah Solar Battery
  • Solar Panels: 760 Watts (Almost maxed out)
    • Luminous (Polycrystalline) 165 Watts x 4 Panels = 660 Watts
    • Loom Solar (Monocrystalline) 50 Watts x 2 Panels = 100 Watts
  • 6 SQ MM DC Wire (recommended up to 800 watts) for all the connections

So, I have a total of 760 Watts configuration to run my home with direct and indirect mains. Here direct mains are enabled for heavy appliances like 1HP Submersible Water Pump or similar heavy load. Where indirect mains line is the mains line which is connected to the solar inverter itself. Let’s see what I’m running on the solar system completely.

  • 10 Watts x 6 LED Bulb = 60 Watts (Used only in the night)
  • 3 Watts x 20 LED Bulb = 60 Watts (Used only in the night)
  • 50 Watts x 6 Ceiling Fans = 300 Watts (Only 2 or 3 fans are running at a time)
  • 200 Watts x 1 Fridge = 200 Watts (Modern fridge even consumes less energy)
  • 200 Watts x (TV, Speaker, and related used equipment)
  • 100 Watts extra for all mobile, and laptop charging.

Practically we do not use all the appliances at once. Only 300-400 watts of power are utilized most of the time. Just in summer days, we use cooler to cool down the main hall.

So, we hardly touch 300-400 Watts usages at a time unless my mother uses her Mixer or similar appliances which are no more than 200-300 watts.

Since we fulfill our complete energy requirements from solar panel itself as we do not need anything more than 400 watts power in the day and 150-200 watts in the night.

I’m using this system for more than 6 months and everything is so smooth for us.

Here are some Pros and Cons which are required to read.

Pros of Luminous Solar NXG 1400 Inverter UPS:

Sine wave output delivers better performance and protection to the connected load.

A negligible amount of heat generation as compared to other Inverters.

Inbuilt PWM charge controller can run a load of up to five lights, five ceiling fans, one television, and one water cooler. Which makes it a decent UPS for the load as well.

Affordable and value for money.

Cons of Luminous Solar NXG 1400 Solar Inverter UPS:

I just found one thing which I hate but my family likes it, which is a sound-based notification. I just hate those long beep sounds when I turn it off.

Conclusion

Overall, this is really a decent Solar Inverter or UPS whatever you call it if you want to install one by yourself or with the help of a technician. If you have any questions regarding this solar inverter do let me know in the comment section below, I’ll definitely try to help you.

Leave a Reply

Your email address will not be published. Required fields are marked *

Responses

  1. Kumar Avatar
    Kumar

    Hi boss, can I connect 2*150 ah batteries with NXG 1400 Luminous Solar Inverter for longer backup? Will it affect the charging efficiency of the inverter?

    1. AtulHost Avatar

      Yes, you can connect the batteries in “Parallel” (Positive to Positive and Negative to Negative terminals) to increase the backup time. About efficiency, it will be normal, but charging may take twice the time because your backup is double now.

  2. Sourav Hazra Avatar
    Sourav Hazra

    Is it possible to charge the battery with solar panels only, and not with the grid?

    1. AtulHost Avatar

      Yes, it is possible. All the solar inverters are capable of charging batteries with solar panels only, grid feature is just a backup solution for any weather critical conditions like rain or winter when solar panels rarely generate energy.

  3. Parthasarathi Barik Avatar
    Parthasarathi Barik

    What is the PWM 98% efficiency of Luminous NXG 1400?

    1. AtulHost Avatar

      PWM utilizes about 70% {(20V*70%=14V) that we use in 12V inverter batteries} of all solar energy. But but but, electricity conversion further costs more loss that is where we look for PWM efficiency. 98% means highly efficient, with negligible loss.

      Calculation explanation: 20V*70%=14V. Here 20V is the actual voltage of 12V solar panels, 70% of the charging efficiency of PWM chargers and controllers, and 14V answer is the actual voltage that we require to charge a 12V battery. Note that we need a little higher voltage to charge any battery.

  4. Habibul Avatar
    Habibul

    Can I run 0.5HP water pump?

    1. Atul Kumar Pandey Avatar

      Yes you can operate half HP of water pump without any issue. I’ll recommend a bigger battery bank like 150 AH or 200 AH for a long backup.

  5. Dhawal Avatar
    Dhawal

    What does it represent when SOLAR CHG led is blinking and when it is stable?

    Is there an option to determine if the battery is completely charged?

    And other observation, in the power saving mode most of the current is consumed from battery rather than solar (SOLAR CHG led is blinking and ON BATT led is stable). Is this expected?

    1. Atul Kumar Pandey Avatar

      Blinking means charging by solar. When the battery is fully charged the LED becomes stable, which simply means the battery is full and any further load will be directly run by the solar panel.

  6. Saikat Avatar
    Saikat

    ১) সোলআর চার্জের লাইটটি কখনও কখনও টিপটিপ করে জ্বলে আবার কখনও জ্বলে থাকে, এ দুইয়ের পার্থক্য কি?
    ২) কিভাবে বুঝবো সোলার থেকে চার্জ হচ্ছে?
    ৩) ৩০০ ওয়াট প্যানেল দিয়ে কি চার্জ হবে?

    এবং দিনের বেলা বেটারী চার্জ থাকা সর্তে সরাসরি আউটপুট মানে গ্রীড ছাড়া বিদ্যুৎ পাওয়া সম্ভব?

    অঘ্রীম ধন্যবাদ।

    Auto translated to English:

    1) The Solar Charge light sometimes blinks and sometimes stays on. What is the difference between these two?

    2) How to understand the charging from solar?

    3) What will be the charge with 300 watt panel?

    And direct output with battery charge during the day means it is possible to get electricity without grid?

    Thank you very much.

    1. AtulHost Avatar

      Hi Saikat, based on auto translated comment, I am replying.

      1) Steady solar light means solar is available but battery is full or in power saving mode now. As soon as you put load it will go back to blinking state again which is charging through solar.

      2) Since this is basic solar inverter there is no display that shows how fast or slow it is charging, I’ll recommend using DC clamp meter to check all these.

      3) 300 watt panel would generate around or less than 8 AMPs of current while PWM charge controller of the inverter will use only 5-6 AMPs (which is ~70%). I’ll recommend to use at least 500 Watts of solar panel for better charging and basic load use in day time.

      Yes, it is possible to get electricity without grid during day hours if enough sunlight is there.
